Help! Which tremolo bar fits my newer jags and Jazzmasters? And where do I get them?

wickedtools · Feb 9, 2024

VealCutlet said:
Do you know the country of origin of this tailpiece? If it’s made in the US those import arms won’t fit. You might have to get an AVRI arm.

If you read my post I stated Fender Classic Player and Squier are both 5mm. I never said Fender AVRI. Found the Fender Repalcement.

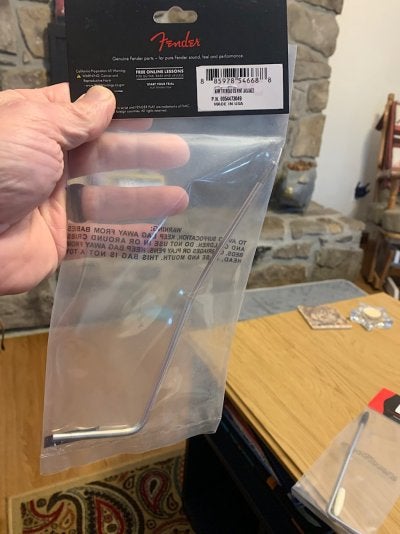

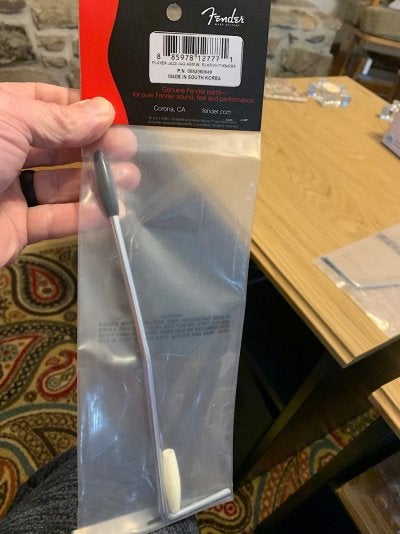

https://www.fender.com/en-US/parts/tremolo-arms/player-jaguarjazzmaster-tremolo-arm/0082060049.html

ericb7799 · Feb 10, 2024

dbrian66 said:

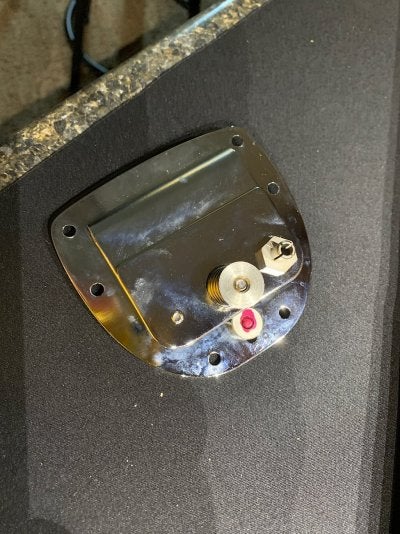

Do you know if these will fit my Fender trem? I brought a 5mm bolt home from work today and it doesn’t fit in the hole. It’s close, but it won’t drop in.

View attachment 281521 View attachment 281522

That one with the red loktite dot on the underside is the Fender AV/AVRI unit. An import 5mm arm won’t work for that one, you need the AVRI bar that has a little notched section in the end.

Amazon.com

The MIM/MIJ Fender & Squier arms are 5mm import arms that just have a plain smooth tip. The AVRI one is the only one with this notched area on the tip.

64DuoSonic · Feb 10, 2024

I have purchased them from eBay sellers but only Genuine Fender arms....aftermarket arms may or may not fit depending on how accurate the sellers description is...

Arkansas Music Supply is a good, reliable seller.

dbrian66 · Feb 10, 2024

ericb7799 said:
That one with the red loktite dot on the underside is the Fender AV/AVRI unit. An import 5mm arm won’t work for that one, you need the AVRI bar that has a little notched section in the end.

Amazon.com
The MIM/MIJ Fender & Squier arms are 5mm import arms that just have a plain smooth tip. The AVRI one is the only one with this notched area on the tip.

Thank you! So I have an arm coming that won’t fit but on the bright side, I have the better of the two trem units! I guess that’s a win in the end.

dbrian66 · Feb 12, 2024

I posted this in the thread on my Jazzmaster, but it’s good info for this thread as well.

I have a tremolo on my CV Jazzmaster that has been replaced. It has the Fender logo on the face of it and and a dab of red Loctite on the underside of the lock button. Thank you to @ericb7799 for providing the info that identifies this as a Fender AVRI tremolo.
